Oscillating Wall Fan

Product Description : Oscillating Wall Fan

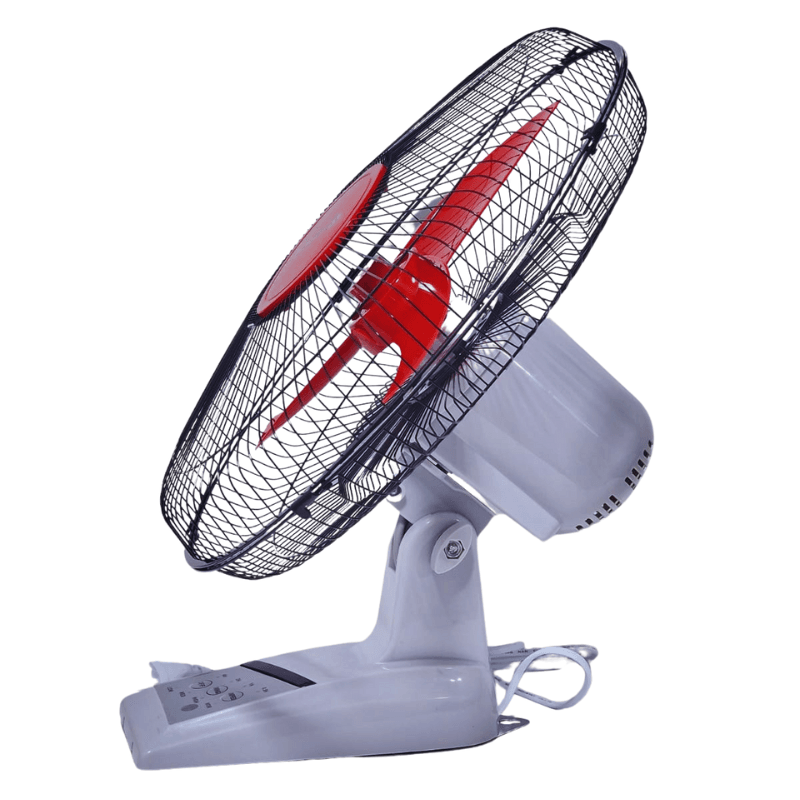

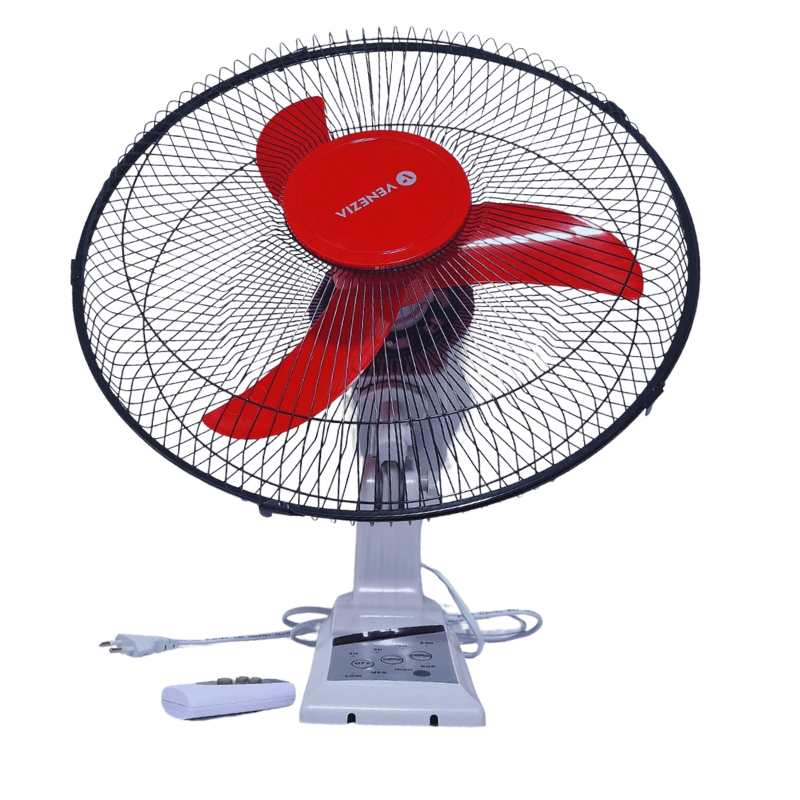

This wall fan is designed to provide efficient ventilation with customizable speed and direction settings. It features a robust motor, balanced blades, and a secure wall-mounting system. Made in China, this product combines functionality and ease of installation.

Main components (see parts diagram)

1. Front Guard (Front Guard)

2. Blade Cap (Blade Cap)

3. Blade (Blade)

4. Guard Lock Nut (Guard Lock Nut)

5. Fixing clips

6. Rear Guard (Rear Guard)

7. Motor Shaft (Motor Shaft)

8. Shaft Pin (Shaft Pin)

9. Motor (Motor)

10. Oscillation cord

11. Motor rear housing (Motor Rear Housing)

12. Swivel Joint (Swivel Joint)

13. Main Body (Main Body)

14. Power Cord (Power Cord)

15. Bottom Plate (Bottom Plate)

16. Rubber Foot (Rubber Foot)

17. Switch (Switch)

18. Motor Front Housing (Motor Front Housing)

19. Tilt Adjustment Knob (Tilt Adjustment Knob)

20. Speed Pull Cord (Pull cord for Speed)

21. Guard Screw (Guard Screw)

Assembly instructions

1. Remove the rear guard screw.

2. Unscrew the blade cap (clockwise) and the lock nut (counterclockwise).

3. Attach the rear guard to the motor by aligning the 3 holes with the 3 tabs of the motor front housing. Press firmly until the tabs pass through completely.

4. Secure the guard with the lock nut.

5. Mount the blade on the motor shaft by aligning the notches with the pin. Tighten with the cap (counterclockwise).

6. Check that the blade rotates freely by hand, without rubbing. If not, start again from step 1.

7. Attach the front guard using the hooks and clips. Tighten the screw on the edge of the rear guard.

Operating instructions

• Vertical adjustment : Pull the oscillation pin, adjust the angle with the tilt knob.

• Speed : Pull the cord to select the speed (High – Medium – Low – Off).

• Oscillation : Pull the dedicated cord to turn oscillation on/off.

Wall installation

1. Attach the mounting plate to the wall using 3 screws (see Fig. B).

2. Hang the fan on the plate.

3. Connect to a power supply.
